產(chǎn)品詳情

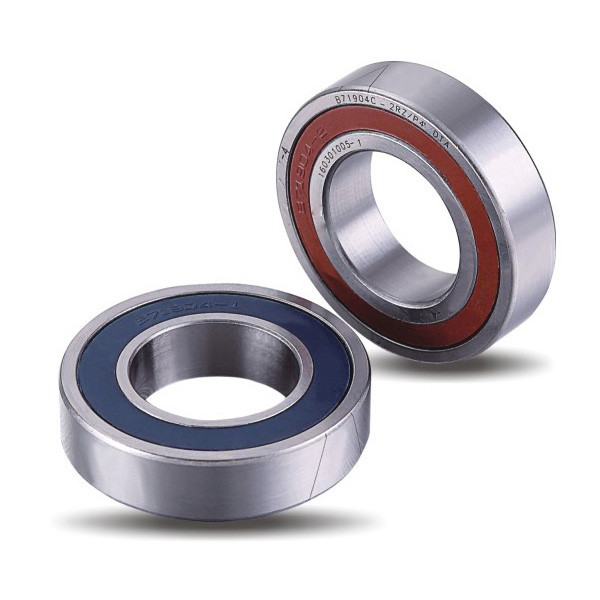

70系列接觸角球軸承
| 軸承Bearings | 尺寸 Demension | mounting dimensions 安裝尺寸 | Loading 額定載荷 | 極限轉(zhuǎn)速 | 予載荷 Prelaoding Fao | 軸向剛度 axial rigidityRa | 重量 Weight | |||||||||||||
| d | D | B | ramin | r1min | da | Da/Db | ra | rb | Cr | Cor | 脂Lub. | 油 Oil | A(L) | B(M) | C(H) | A(L) | B(M) | C(H) | ≈ | |
| mm | min | max | max | max | kN | r/min | N | N/μm | Kg | |||||||||||
| 7004C | 20 | 42 | 12 | 0.6 | 0.15 | 24.5 | 37.5 | 0.6 | 0.15 | 9.6 | 6.3 | 38000 | 56000 | 50 | 150 | 300 | 24 | 35 | 44 | 0.06 |
| 7004AC | 20 | 42 | 12 | 0.6 | 0.15 | 24.5 | 37.5 | 0.6 | 0.15 | 9.2 | 6 | 34000 | 50000 | 80 | 240 | 480 | 64 | 90 | 113 | 0.06 |
| 7005C | 25 | 47 | 12 | 0.6 | 0.15 | 29 | 43 | 0.6 | 0.15 | 12.9 | 8.7 | 34000 | 50000 | 65 | 190 | 380 | 29 | 42 | 53 | 0.07 |
| 7005AC | 25 | 47 | 12 | 0.6 | 0.15 | 29 | 43 | 0.6 | 0.15 | 12.3 | 8.3 | 30000 | 45000 | 105 | 310 | 620 | 77 | 108 | 136 | 0.07 |
| 7006C | 30 | 55 | 13 | 1 | 0.3 | 34.5 | 50.5 | 1 | 0.3 | 15.7 | 11.6 | 28000 | 43000 | 80 | 240 | 480 | 35 | 50 | 63 | 0.11 |
| 7006AC | 30 | 55 | 13 | 1 | 0.3 | 34.5 | 50.5 | 1 | 0.3 | 14.9 | 10.9 | 24000 | 38000 | 130 | 390 | 780 | 92 | 128 | 161 | 0.11 |
| 7007C | 35 | 62 | 14 | 1 | 0.3 | 40.5 | 56.5 | 1 | 0.3 | 19.3 | 17.5 | 20000 | 34000 | 100 | 300 | 600 | 39 | 56 | 71 | 0.15 |
| 7007AC | 35 | 62 | 14 | 1 | 0.3 | 40.5 | 56.5 | 1 | 0.3 | 18.3 | 16.6 | 19000 | 32000 | 165 | 490 | 980 | 104 | 146 | 183 | 0.15 |
| 7008C | 40 | 68 | 15 | 1 | 0.3 | 46 | 62 | 1 | 0.3 | 19.9 | 19.1 | 19000 | 32000 | 105 | 310 | 620 | 41 | 59 | 75 | 0.19 |
| 7008AC | 40 | 68 | 15 | 1 | 0.3 | 46 | 62 | 1 | 0.3 | 18.9 | 18.2 | 17000 | 28000 | 170 | 510 | 1020 | 109 | 153 | 193 | 0.19 |
| 7009C | 45 | 75 | 16 | 1 | 0.3 | 50.5 | 69.5 | 1 | 0.3 | 26.7 | 25.3 | 17000 | 28000 | 140 | 420 | 840 | 46 | 67 | 85 | 0.23 |
| 7009AC | 45 | 75 | 16 | 1 | 0.3 | 50.5 | 69.5 | 1 | 0.3 | 25.4 | 24.1 | 16000 | 26000 | 320 | 690 | 1380 | 123 | 172 | 216 | 0.23 |
| 7010C | 50 | 80 | 16 | 1 | 0.3 | 55.5 | 74.5 | 1 | 0.3 | 27.6 | 27.5 | 16000 | 26000 | 145 | 430 | 860 | 49 | 71 | 89 | 0.25 |
| 7010AC | 50 | 80 | 16 | 1 | 0.3 | 55.5 | 74.5 | 1 | 0.3 | 26.2 | 26.2 | 15000 | 24000 | 235 | 700 | 1400 | 130 | 182 | 229 | 0.25 |
| 7011C | 55 | 90 | 18 | 1.1 | 0.6 | 61.5 | 83.5 | 1.1 | 0.6 | 36.7 | 37.1 | 14000 | 22000 | 195 | 580 | 1160 | 56 | 81 | 103 | 0.37 |
| 7011AC | 55 | 90 | 18 | 1.1 | 0.6 | 61.5 | 83.5 | 1.1 | 0.6 | 34.8 | 35.3 | 13000 | 20000 | 315 | 940 | 1880 | 150 | 210 | 264 | 0.37 |
| 7012C | 60 | 95 | 18 | 1.1 | 0.6 | 66.5 | 88.5 | 1.1 | 0.6 | 37.8 | 40 | 14000 | 20000 | 500 | 600 | 1200 | 59 | 85 | 108 | 0.39 |
| 7012AC | 60 | 95 | 18 | 1.1 | 0.6 | 66.5 | 88.5 | 1.1 | 0.6 | 35.8 | 38 | 12000 | 19000 | 325 | 970 | 1940 | 158 | 221 | 278 | 0.39 |
| 7013C | 65 | 100 | 18 | 1.1 | 0.6 | 71.5 | 93.5 | 1.1 | 0.6 | 38.9 | 42.9 | 13000 | 20000 | 210 | 630 | 1260 | 62 | 90 | 114 | 0.42 |
| 7013AC | 65 | 100 | 18 | 1.1 | 0.6 | 71.5 | 93.5 | 1.1 | 0.6 | 36.8 | 40.7 | 11000 | 18000 | 330 | 990 | 1900 | 165 | 232 | 292 | 0.42 |
| 7014C | 70 | 110 | 20 | 1.1 | 0.6 | 77.5 | 103 | 1.1 | 0.6 | 49.9 | 55.5 | 12000 | 19000 | 270 | 810 | 1620 | 70 | 102 | 129 | 0.59 |
| 7014AC | 70 | 110 | 20 | 1.1 | 0.6 | 77.5 | 103 | 1.1 | ||||||||||||
